Connected Car | Technical Specifications

The OBD2 dongle Connected Car Systems 2G and LTE Cat M1 are designed, developed, and manufactured by autoaid.

Designed to connect

autoaid dongles are based on global standards. With autoaid, your fleet is networked, encrypted and worldwide usable.

Designed to last

autoaid dongles were designed to remain reliable for years across a wide temperature range.

Designed to scale

Whether you start with 5 or 500 vehicles, autoaid enables you to expand fleets globally. With autoaid, your project is equipped for complete fleet connectivity and ready to scale.

autoaid Connected Car System 2G

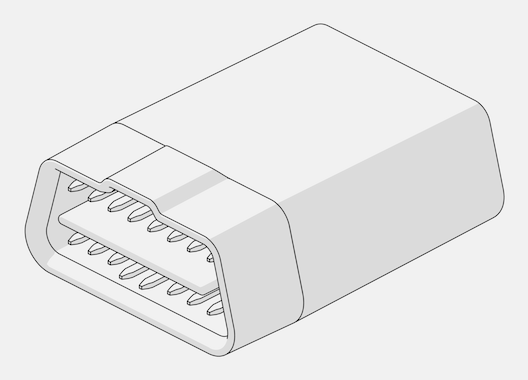

Hardware	OBD2 Dongle

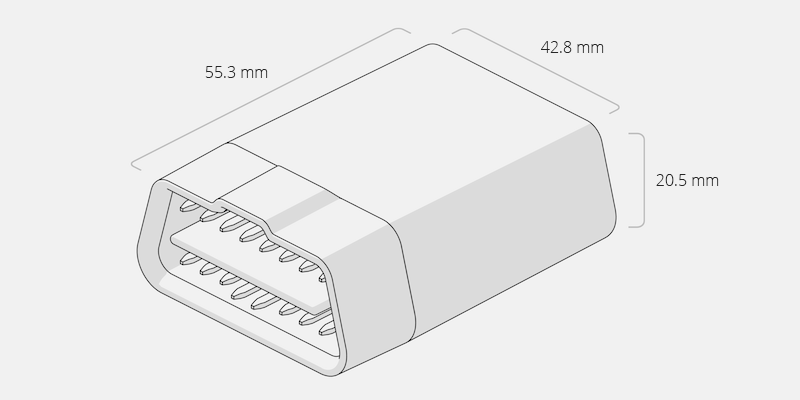

Dimensions (mm)	55.3 x 42.8 x 20.5
Weight (g)	35
Processor	ARM Cortex M4, 72 MHz, Instant Boot < 100ms
Connectivity	GSM/EDGE, Quad Band (850, 900, 1800, 1900 MHz)
page.ccd.specs.technical.detail5b.key	page.ccd.specs.technical.detail5b.value
Extended connectivity	4G CAT-M1 (coming soon)
GPS receiver / GSM module	Quectel MC60, Assisted GPS, GLONASS, Galileo and QZSS Sensitivity: -167 dBm for tracking Channels: 99 aquisition / 33 tracking
page.ccd.specs.technical.detail7b.key	page.ccd.specs.technical.detail7b.value
SIM card	Nano SIM (pre-installed)
Standards and protocols	SAE J1850 PWM SAE J1850 VPW SAE J1978 SAE J1979 SAE J2012 SAE J2178-1/2/3/4 SAE J2284-1/2/3/4 SAE J2411 (SW-CAN) SAE J2534 SAE J2819 (TP2.0) ISO 9141-2 ISO 11898 (CAN) ISO 14229-1/2/3 (UDS) ISO 14230 KWP2000 ISO 15031-1/2/3/4/5/6/7 (OBD-II & E-OBD) ISO 15765-1/2/3/4 CAN (DoCAN) ISO 27145-1/2/3/4 (WWH-OBD) FNOS (Ford specific Diagnostics) GMLAN (General Motors specific Diagnostics / CAN) + ca. 30 weitere herstellerspezifische Protokolle
Pin configuration	Pin switching / multiplexing for CAN and K-Line
Built-in Bluetooth	BT 3.0 and BT 4.0 (on request)
page.ccd.specs.technical.detail11b.key	page.ccd.specs.technical.detail11b.value
3D accelerometer	Full scale output range: ±2g; ±4g; ±6g ; ±8g ; ±16g 16 bit data output; low temperature drift; good linearity
Internal power supply	Supercapicators
Audio output	Internal buzzer
Operating system	autoaid Connect OS 2.1
Voltage	8 - 16 V
Operating temperature	-30 / +65°C
Region	Global
Certification	CE, ECE (E2410R05/012817*00)
Color	Black (additional colors and white label solutions on request)

Hardware OBD2 Dongle
Dimensions (mm) 55.3 x 42.8 x 20.5
Weight (g) 35
Processor ARM Cortex M4, 72 MHz, Instant Boot < 100ms
Connectivity GSM/EDGE, Quad Band (850, 900, 1800, 1900 MHz)
Extended connectivity 4G CAT-M1 (coming soon)
GPS receiver / GSM module Quectel MC60, Assisted GPS, GLONASS, Galileo and QZSS Sensitivity: -167 dBm for tracking Channels: 99 aquisition / 33 tracking
SIM card Nano SIM (pre-installed)
Standards and protocols SAE J1850 PWM SAE J1850 VPW SAE J1978 SAE J1979 SAE J2012 SAE J2178-1/2/3/4 SAE J2284-1/2/3/4 SAE J2411 (SW-CAN) SAE J2534 SAE J2819 (TP2.0) ISO 9141-2 ISO 11898 (CAN) ISO 14229-1/2/3 (UDS) ISO 14230 KWP2000 ISO 15031-1/2/3/4/5/6/7 (OBD-II & E-OBD) ISO 15765-1/2/3/4 CAN (DoCAN) ISO 27145-1/2/3/4 (WWH-OBD) FNOS (Ford specific Diagnostics) GMLAN (General Motors specific Diagnostics / CAN) + ca. 30 weitere herstellerspezifische Protokolle
Pin configuration Pin switching / multiplexing for CAN and K-Line
Built-in Bluetooth BT 3.0 and BT 4.0 (on request)
3D accelerometer Full scale output range: ±2g; ±4g; ±6g ; ±8g ; ±16g 16 bit data output; low temperature drift; good linearity
Internal power supply Supercapicators
Audio output Internal buzzer
Operating system autoaid Connect OS 2.1
Voltage 8 - 16 V
Operating temperature -30 / +65°C
Region Global
Certification CE, ECE (E2410R05/012817*00)
Color Black (additional colors and white label solutions on request)
